Simplify your linear actuator installation!
This kit comes with a two 2-button remote controls, plus a 2-way rocker switch, relays, and wiring for linear actuators. Use it to control your tonneau cover, amp rack, motorized trunk...whatever! One switch kit can control two linear actuators.
This remote kit is very versitile. The remotes can be set up to work two different ways:
- Timed mode - Press a button on the remote once and the actuator will go up or down for anywhere from 1 to 30 seconds. You can program the time.
- Duration of Transmit Mode: The actuator will go up or down for as long as you hold the button on the remote.

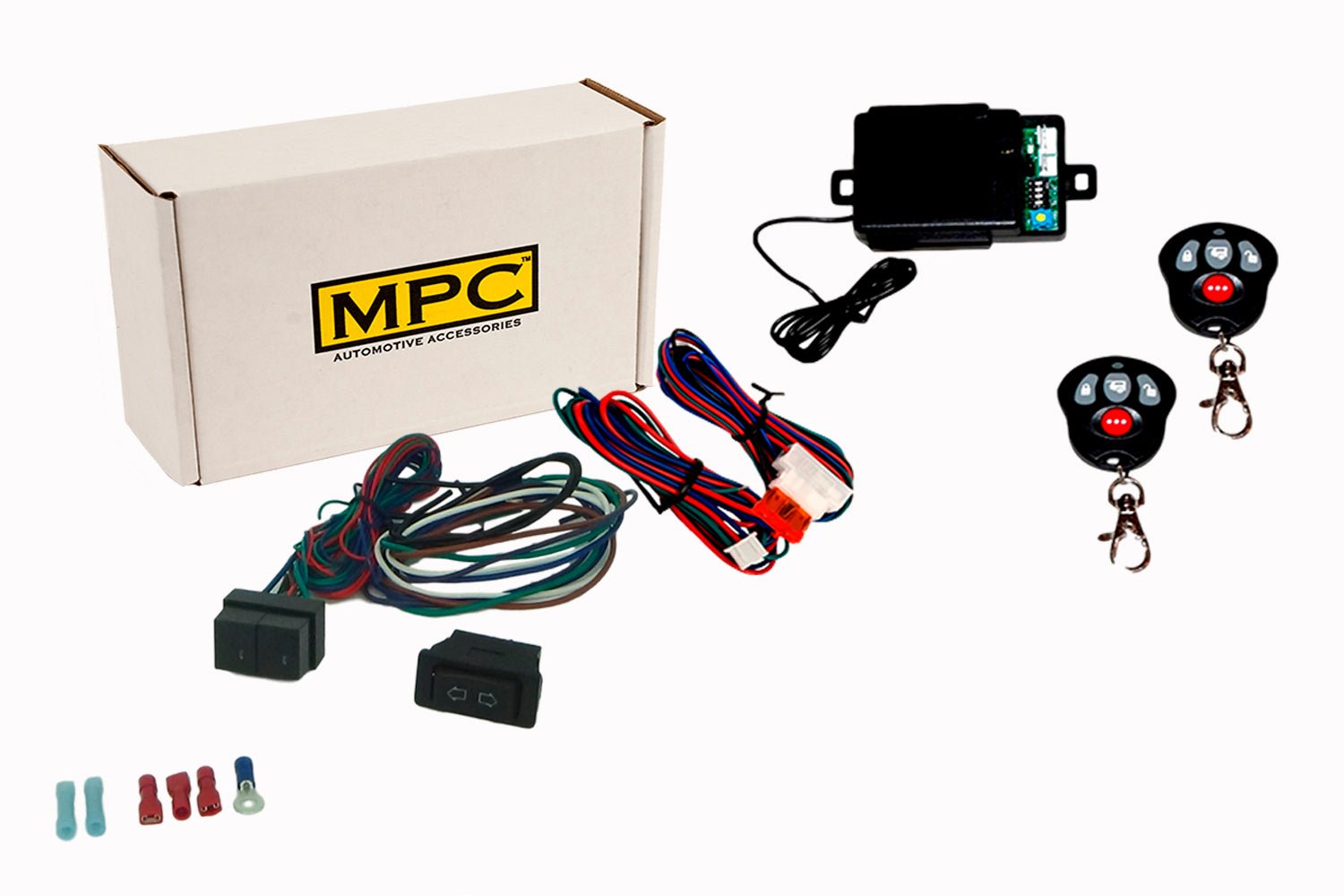

Kit Includes:
- Up/Down rocker switch
- Two 2-button remote controls
- Compact remote receiver
- 2 relays
- prewired relay harness
- Instructions in Real English!
For 12-volt systems only. One kit can control two actuators working together.
This kit works for the following actuators:
LAD Series - Ideal for most automotive, solar and light industrial applications
|
| P/N | Travel | A (min-max) | B (min-max) | C | D | E | Voltage | Speed | Static Load | Dynamic Load |
| LAD2 | 2 in. | 11"-13" | 9½"-11½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
| LAD4 | 4 in. | 13"-17" | 11½"-15½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
| LAD6 | 6 in. | 15"-21" | 13½"-19½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
| LAD8 | 8 in. | 17"-25" | 15½"-23½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
| LAD10 | 10 in. | 19"-29" | 17½"-27½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
| LAD12 | 12 in. | 21"-33" | 19½"-31½" | 5½ in. | 4⅞ in. | 2¼ in. | 12 VDC | 9 mm/s | 225 lb. | 112 lb. |
California residents: Click here for Proposition 65 warning
- Custom wiring & remote control switch kit for hooking up 12 volt linear actuators. Product may not work in vehicles manufactured for sale outside of U.S. & Canada.
- Two 2-button remote controls & compact remote receiver
- 2 Relays & Prewired Relay Harness
