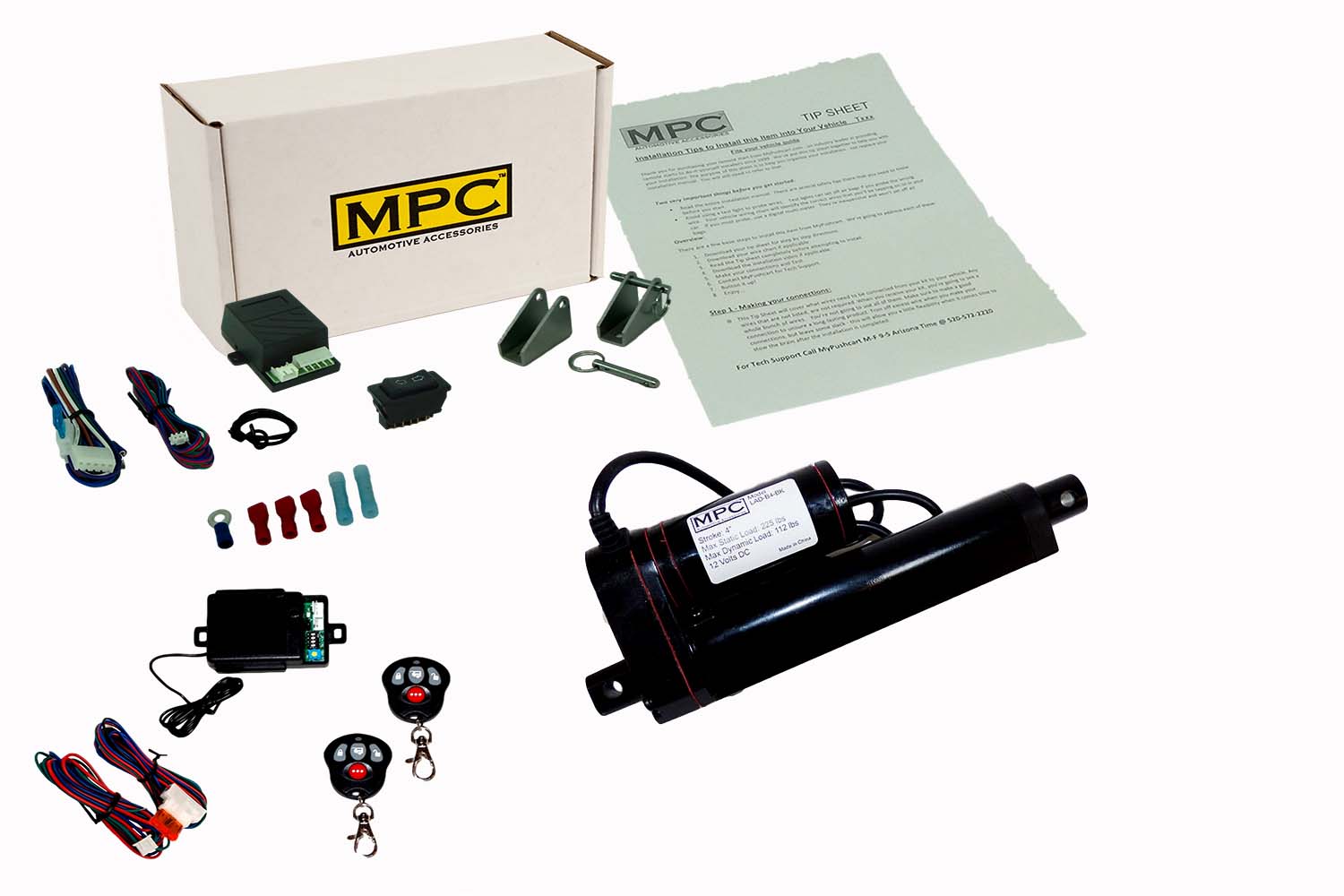

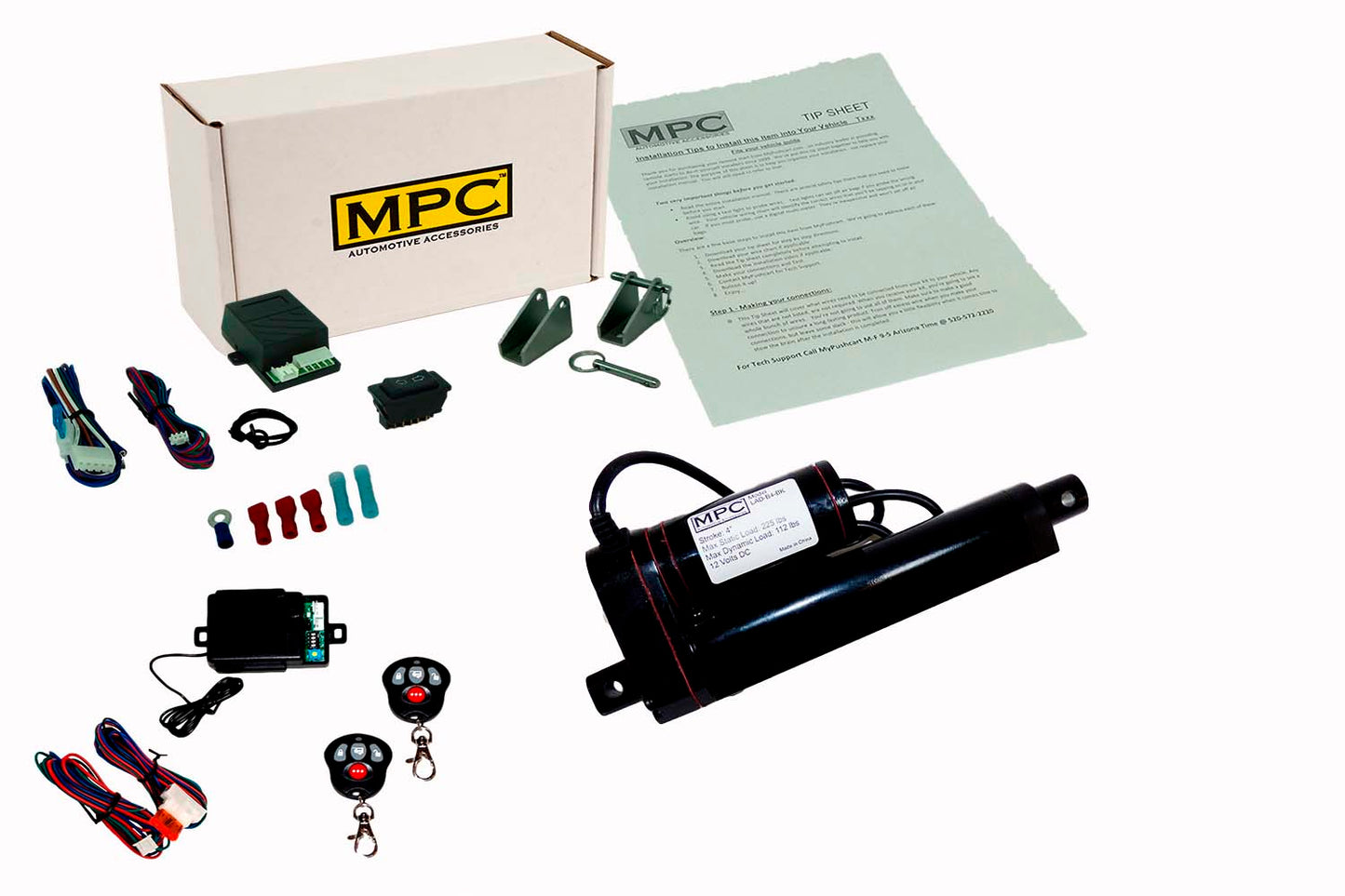

Here is a black 4" heavy duty Linear Actuator with Remote Control Switch kit, 2 Steel Brackets and Cotter less Pins. These heavy duty linear actuators are perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine! 4 inch travel. 10:1 Gear Ratio for fast operation. Built in clutch prevents damage from over extension. High torque motor. 225 lb max static load, 112 lb max dynamic load. Permanently lubricated sealed shaft. Travel speed: .472 inches/sec (12 mm/sec) at 50% load. Max draw:4.8 amps. 20% duty cycle. This kit comes with a two 2-button remote controls, plus a 2-way rocker switch, relays, and wiring specifically for our linear actuators. This remote kit is very versatile. The remotes can be set up to work two different ways: Timed mode - Press a button on the remote once and the actuator will go up or down for anywhere from 1 to 30 seconds. Programmable.

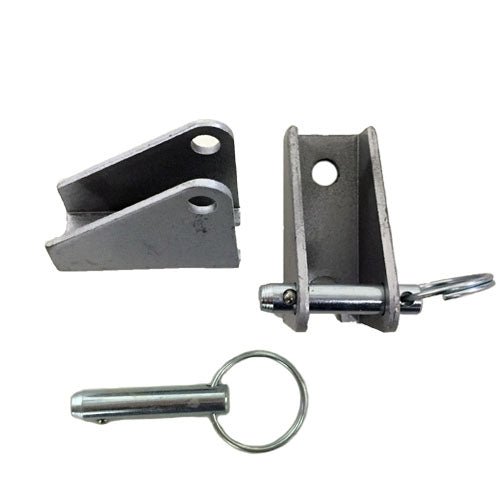

Custom Steel Brackets Each kit includes {@part1@} Steel brackets with {@part1@} Cotter less Hitch Pins. Each is a custom fit bracket. Because each one is custom fit, there's no excessive lateral movement on the bolt - ensuring accurate and reliable performance. The Cotter less Hitch Pin design allows you to easily attach and remove the actuator from its bracket, without the risk of over-tightening or squeezing the brackets.
B Series – Ideal for most automotive, solar and light industrial applications
|
| P/N | Travel | A (min-max) | B (min-max) | C | D | E | Voltage | Speed | Static Load | Dynamic Load |
| LAD-B2 | 2 in. | 7"-9" | 6¼"-8¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B4 | 4 in. | 9"-13" | 8¼"-12¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B6 | 6 in. | 10¾"-16¾" | 10"-16" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B8 | 8 in. | 12¾"-20¾" | 12"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B10 | 10 in. | 14¾"-24¾" | 14"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B12 | 12 in. | 16¾"-28¾" | 16"-28" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
Why Buy Linear Actuators From Us?
Our heavy duty linear actuators require minimal to no maintenance. Linear actuators provide both high durability and high performance, and all delivered from a compact unit.
- High speed
- Efficiency
- Accuracy
Our actuators are tested prior to shipment to ensure that it will deliver trouble free operation and outstanding performance.
Durable and Dependable
Our linear actuators are some of the most rugged actuators available on the market today. Our linear actuators are designed and built to perform in even the harshest elements.
Regardless of Materials
- Fertilizers
- Mud
- Sand
- Regardless of Environments
- Slush
- Salt water
- Snow
- Heat
- Heavy vibrations
- High pressure water
Example Industrial or Commercial Applications:
Ideal for: - Farming Equipment
- Road Maintenance
- Construction Work
- Military
- Yachts
- Ships
- Oil Platforms
- Trains
- Mining equipment
- Food Industry
|
Automate: - Hatches
- Doors
- Spreaders
- Throttles
- Tonneau covers
- Motorized trunks
- Hoods
- Amp racks
- Dump Beds
- Lifts
|
WARNING: This actuator is designed for pushing and sliding loads only. It will not work to pull a load, except for minimal load applications. If you install this to pull, it will damage the actuator and void the warranty.
California residents: Click here for Proposition 65 warning

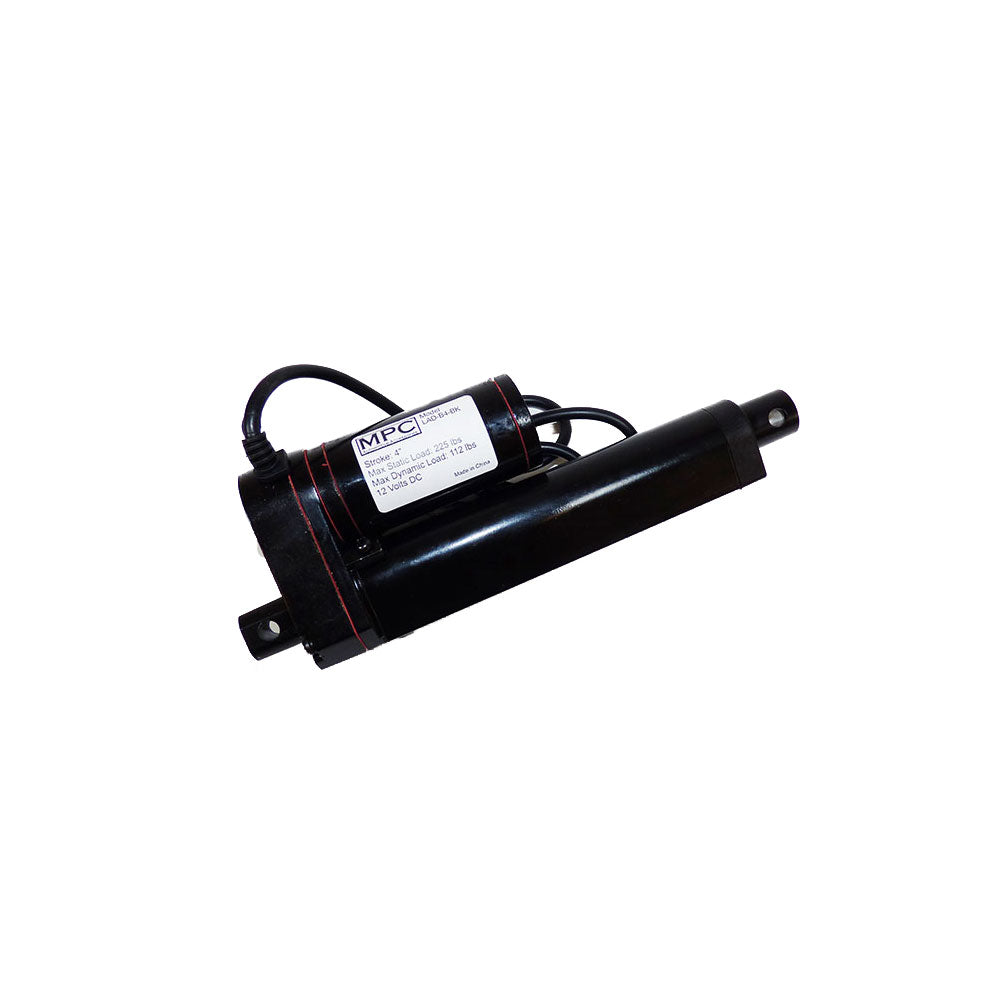

- Heavy duty linear actuator with 4 inch travel. Our heavy duty linear actuator kit includes 2 custom steel brackets with cotter less pins. Offers a 225 lb max static load; 112 lb max dynamic load per actuator. Product may not work in vehicles manufactured for sale outside of U.S. & Canada.
- A custom wiring & remote control switch kit for hooking up 12 volt linear actuators. Our remote switch kit was developed to fit all of MPC's linear actuators. Includes Two 2-button remote controls & compact remote receiver.
- Perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine!
