LAD Series - 12 Volt Actuator w/12" Stroke with 225 lb Max Load w/ Brackets

$79.99

  • LAD Series - 12 Volt Actuator w/12" Stroke with 225 lb Max Load w/ Brackets - MyPushcart

3538

$79.99
$79.99 $98.95
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.


Here is a 12" heavy duty Linear Actuator with 2 Steel Brackets and Cotter less Pins. These heavy duty linear actuators are perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine! 12 inches travel. 10:1 Gear Ratio for fast operation. Built in clutch prevents damage from over extension. High torque motor. 225 lb max static load, 112 lb max dynamic load. Permanently lubricated sealed shaft. Travel speed: .472 inches/sec (12 mm/sec) at 50% load. Max draw: 4.8 amps. 20% duty cycle. Use it to control your tonneau cover, amp rack, motorized trunk...whatever!

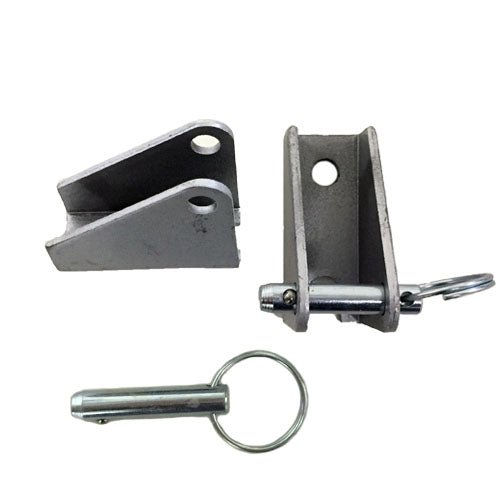

Custom Steel Brackets

Each kit includes {@part1@} Steel brackets with {@part1@} Cotter less Hitch Pins. Each is a custom fit bracket. Because each one is custom fit, there's no excessive lateral movement on the bolt - ensuring accurate and reliable performance. The Cotter less Hitch Pin design allows you to easily attach and remove the actuator from its bracket, without the risk of over-tightening or squeezing the brackets.







actuator diagram
B Series – Ideal for most automotive, solar and light industrial applications
P/N Travel A
(min-max)		 B
(min-max)		 C D E Voltage Speed Static
Load		 Dynamic
Load
LAD-B2 2 in. 7"-9" 6¼"-8¼" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.
LAD-B4 4 in. 9"-13" 8¼"-12¼" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.
LAD-B6 6 in. 10¾"-16¾" 10"-16" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.
LAD-B8 8 in. 12¾"-20¾" 12"-20" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.
LAD-B10 10 in. 14¾"-24¾" 14"-20" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.
LAD-B12 12 in. 16¾"-28¾" 16"-28" 4 in. 3 in. 1.6 in. 12 VDC 12 mm/s 225 lb. 112 lb.


Why Buy Linear Actuators From Us?


Our heavy duty linear actuators require minimal to no maintenance. Linear actuators provide both high durability and high performance, and all delivered from a compact unit.

  • High speed
  • Efficiency
  • Accuracy

Our actuators are tested prior to shipment to ensure that it will deliver trouble free operation and outstanding performance.


Durable and Dependable

Our linear actuators are some of the most rugged actuators available on the market today. Our linear actuators are designed and built to perform in even the harshest elements.

Regardless of Materials
  • Fertilizers
  • Mud
  • Sand
  • Regardless of Environments
  • Slush
  • Salt water
  • Snow
  • Heat
  • Heavy vibrations
  • High pressure water

Example Industrial or Commercial Applications:


Ideal for:
  • Farming Equipment
  • Road Maintenance
  • Construction Work
  • Military
  • Yachts
  • Ships
  • Oil Platforms
  • Trains
  • Mining equipment
  • Food Industry
 Automate:
  • Hatches
  • Doors
  • Spreaders
  • Throttles
  • Tonneau covers
  • Motorized trunks
  • Hoods
  • Amp racks
  • Dump Beds
  • Lifts
.

California residents: Click here for Proposition 65 warning

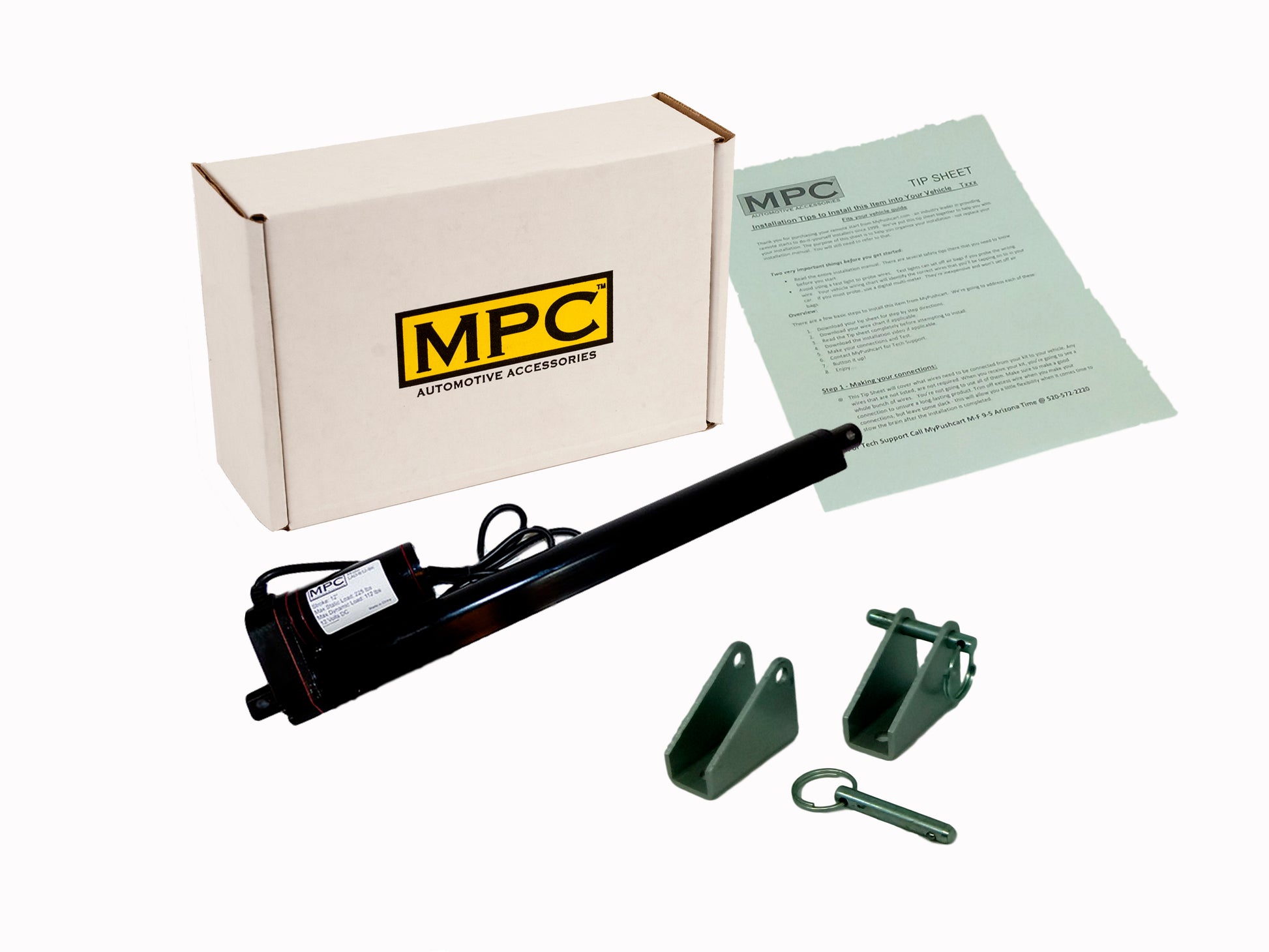

  • Black Heavy Duty Linear Actuator with 12 inch travel. Our heavy duty linear actuator kit includes 2 custom steel brackets with cotter less pins. Our custom brackets are made specifically for this Linear Actuator. Product may not work in vehicles manufactured for sale outside of U.S. & Canada.
  • 225 lb max static load; 112 lb max dynamic load
  • Overall Length: 16.75" (Min) to 28.75"(Max); Length Between Mounting Holes: 16" (Min) to 28"(Max)
