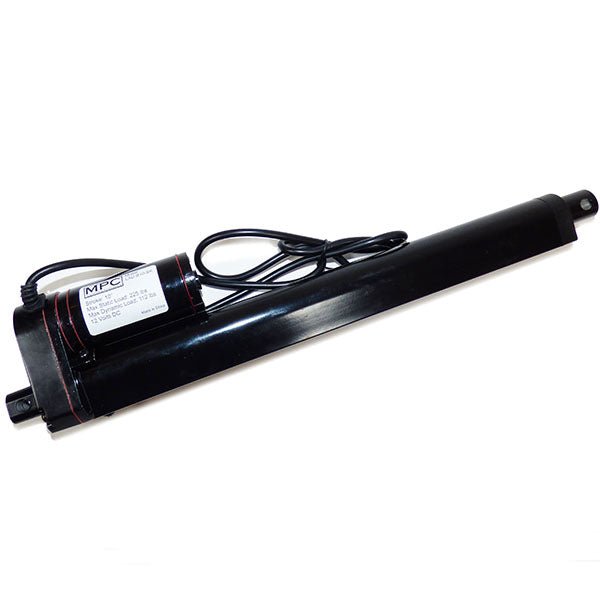

This 10" heavy duty linear actuators are perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine! We are including a wiring switch kit too. This linear actuator has a 10 inch travel. 10:1 Gear Ratio for fast operation. Built in clutch prevents damage from over extension. High torque motor. 225 lb max static load, 112 lb max dynamic load. Permanently lubricated sealed shaft. Travel speed: .472 inches/sec (12 mm/sec) at 50% load. Mounting hole diameter: 5/16". Max draw: 4.8 amps. 20% duty cycle.

This heavy duty linear actuator is perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine!
Specifications
{@Bullet1@} {@Bullet2@} {@Bullet3@} High torque motor Travel speed: .472 inches/sec (12 mm/sec) at 50% load. 20% Duty Cycle 225 lb max static load, 112 lb max dynamic load. Permanently lubricated sealed shaft {@bullet4@} {@bullet5@}
B Series – Ideal for most automotive, solar and light industrial applications
|
| P/N | Travel | A (min-max) | B (min-max) | C | D | E | Voltage | Speed | Static Load | Dynamic Load |
| LAD-B2-BK | 2 in. | 7"-9" | 6¼"-8¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B4-BK | 4 in. | 9"-13" | 8¼"-12¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B6-BK | 6 in. | 10¾"-16¾" | 10"-16" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B8-BK | 8 in. | 12¾"-20¾" | 12"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B10-BK | 10 in. | 14¾"-24¾" | 14"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B12-BK | 12 in. | 16¾"-28¾" | 16"-28" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
Why Buy Linear Actuators From Us?
Our heavy duty linear actuators require minimal to no maintenance. Linear actuators provide both high durability and high performance, and all delivered from a compact unit.
- High speed
- Efficiency
- Accuracy
Our actuators are tested prior to shipment to ensure that it will deliver trouble free operation and outstanding performance.
Durable and Dependable
Our linear actuators are some of the most rugged actuators available on the market today. Our linear actuators are designed and built to perform in even the harshest elements.
Regardless of Materials
- Fertilizers
- Mud
- Sand
- Regardless of Environments
- Slush
- Salt water
- Snow
- Heat
- Heavy vibrations
- High pressure water
Example Industrial or Commercial Applications:
Ideal for: - Farming Equipment
- Road Maintenance
- Construction Work
- Military
- Yachts
- Ships
- Oil Platforms
- Trains
- Mining equipment
- Food Industry
|
Automate: - Hatches
- Doors
- Spreaders
- Throttles
- Tonneau covers
- Motorized trunks
- Hoods
- Amp racks
- Dump Beds
- Lifts
|
California residents: Click here for Proposition 65 warning

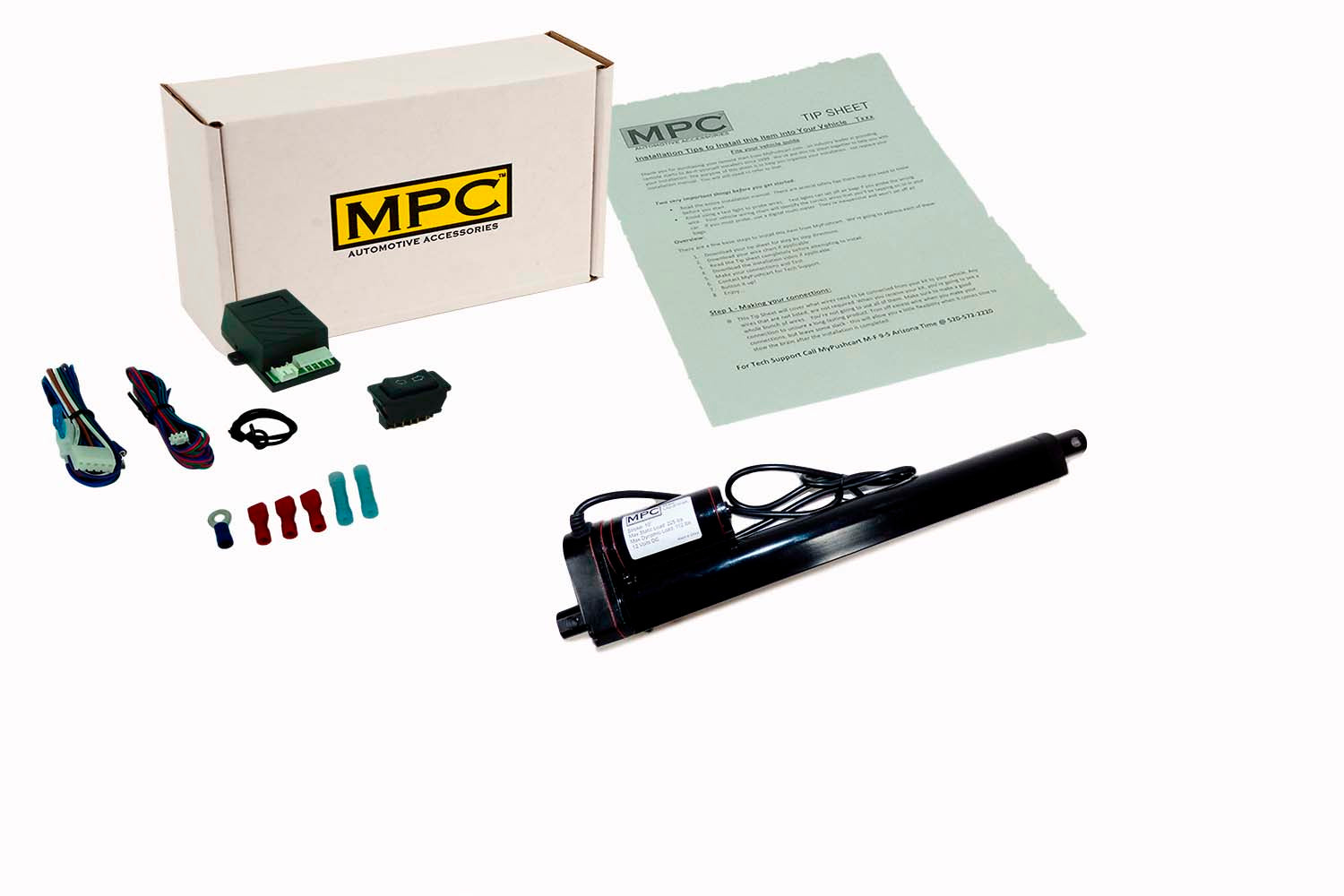

- Heavy duty linear actuator with 10 inch travel. This kit includes an electrical switch to operate this linear actuator. Product may not work in vehicles manufactured for sale outside of U.S. & Canada.
- 225 lb max static load; 112 lb max dynamic load
- Overall Length: 14.75" (Min) to 24.75"(Max); Length Between Mounting Holes: 14" (Min) to 24"(Max)
