Heavy Duty Linear Actuator 12 Volt,12" Stroke: Includes Remote Switch & Brackets
- FREE 2-DAY SHIPPING ON ALL REMOTE START SYSTEMS
- 30 DAY RETURN POLICY
- FREE EXPERT TECHNICAL SUPPORT MONDAY - FRIDAY 9AM - 5PM (MST)
- SECURE PAYMENTS

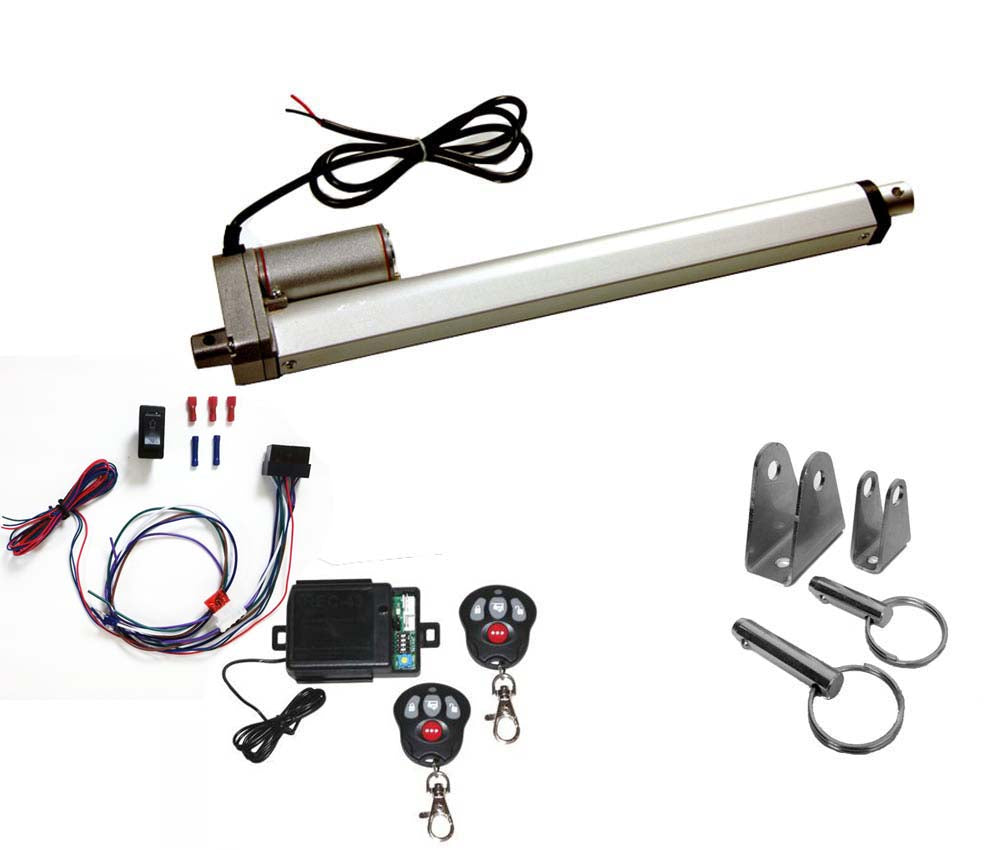

Each kit includes {@part1@} Steel brackets with {@part1@} Cotter less Hitch Pins. Each is a custom fit bracket. Because each one is custom fit, there's no excessive lateral movement on the bolt - ensuring accurate and reliable performance. The Cotter less Hitch Pin design allows you to easily attach and remove the actuator from its bracket, without the risk of over-tightening or squeezing the brackets.
B Series – Ideal for most automotive, solar and light industrial applications |
||||||||||
| P/N | Travel | A (min-max) | B (min-max) | C | D | E | Voltage | Speed | Static Load | Dynamic Load |
| LAD-B2 | 2 in. | 7"-9" | 6¼"-8¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B4 | 4 in. | 9"-13" | 8¼"-12¼" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B6 | 6 in. | 10¾"-16¾" | 10"-16" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B8 | 8 in. | 12¾"-20¾" | 12"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |

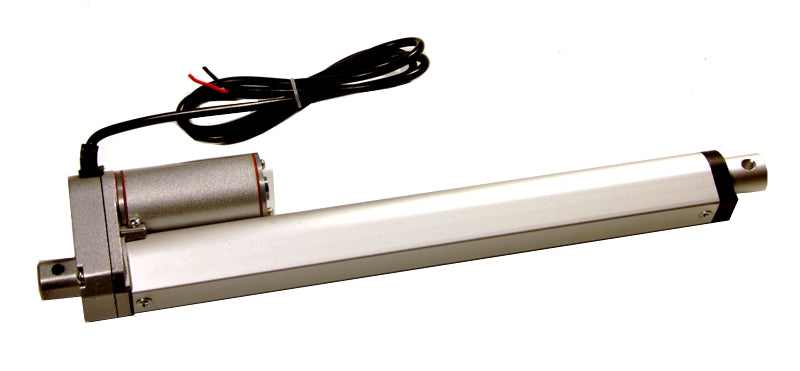

| LAD-B10 | 10 in. | 14¾"-24¾" | 14"-20" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
| LAD-B12 | 12 in. | 16¾"-28¾" | 16"-28" | 4 in. | 3 in. | 1.6 in. | 12 VDC | 12 mm/s | 225 lb. | 112 lb. |
Â
Â
Â
Â
Our heavy duty linear actuators require minimal to no maintenance. Linear actuators provide both high durability and high performance, and all delivered from a compact unit.
Our actuators are tested prior to shipment to ensure that it will deliver trouble free operation and outstanding performance.
Our linear actuators are some of the most rugged actuators available on the market today. Our linear actuators are designed and built to perform in even the harshest elements.
Regardless of Materials Ideal for:
|
Automate:
|
WARNING: This actuator is designed for pushing and sliding loads only. Â It will not work to pull a load, except for minimal load applications. Â If you install this to pull, it will damage the actuator and void the warranty.
